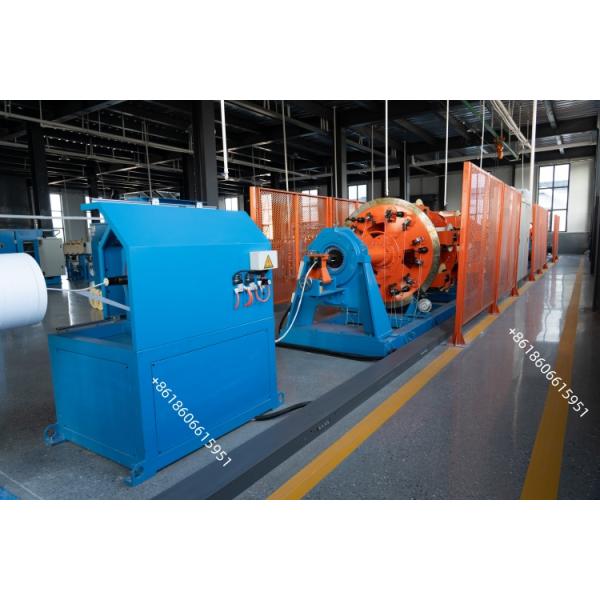

Stranding Machine Jl-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting
Equipment use
It is mainly used for twisted composite cables of various plastic cable insulation cores, and can also be used for robot cable twisting. It can also be used for the production of optical fiber composite overhead ground wires (OPGW) in high voltage overhead power transmission systems.
Product Series
01. Based on different bobbin size in stranding cage: PN200, PN315, PN400, PN500, PN630, PN710,
PND400, PND500, PND630, PND710
02. Based on different cores of stranding cable: 1+6(7B), 1+12 (13B), 1+18(19B)
03. Based on different supporting type: bearing type, support roller type.
04. Based on different type back-twist: gear type back-twist, back-twist ring type
05. Based on different pay-off tension control: magnetic powder brake type tension control, mechanical
automatic feedback type tension control, fixed tension mechanical friction type tension control.
06. Based on different take-up: Portal type, shaft-less type and shaft type in structure; φ1250, φ1600,
φ2000 in bobbin size.
07. Based on different capstan dia.: φ315, φ800, φ1000, φ1250, φ1500
08. Based on different control of main motor: DC speed regulation, AC frequency conversion speed regulation,
electromagnetic speed regulation
| Single wire diameter | Φ1.2~Φ5.0mm |
| Stranding cage rotating speed | 8 bobbins | 36.3~86.6r/min |
| 16 bobbins | 31.9~76r/min |
| Stranding pitch | 8 bobbins | 31.9~76r/min |
| 16 bobbins | 74.7~1284.2mm |
| Wrapping head rotating speed | 170~380r/min |
Features
01. Fully bearing support: Adopt fully bearing to support stranding tube, which highly increase the producing
efficiency and ensure the smooth running, low noise and long service life.
02. Convenient bobbin clamping: Adopt spring to clamp bobbin automatically and pneumatically loosen
bobbin with mechanical lock. Such designs are easy and safety to operate.
03. Wire broken protection: The wire broken protection function ensure the stop of machine automatically
once detect the wire broken.
Product Parameters
Main Compositions
01. Pay-off
02. Wire guiding stand
03. Stranding cage
04. Closing die holder
05. Compacting device (selectable)
06. Nonmetal taping device (selectable)
07. Length counter
08. Dual wheel capstan
09. Take-up
10. Mechanical transmission system
11. Electric control system
12. Safety protection system
Product Tags:
|
|
Stranding Machine JLY-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting Images
|
